TECHNICAL SPECIFICATIONS
Weight: ............................................ 1,8 kg (including 7 m cable)
Protection:.............................................................................. IP44
Motor supply from autopilot computer/junction unit: 5 - 14V DC
Thrust:..................................................................................500 N

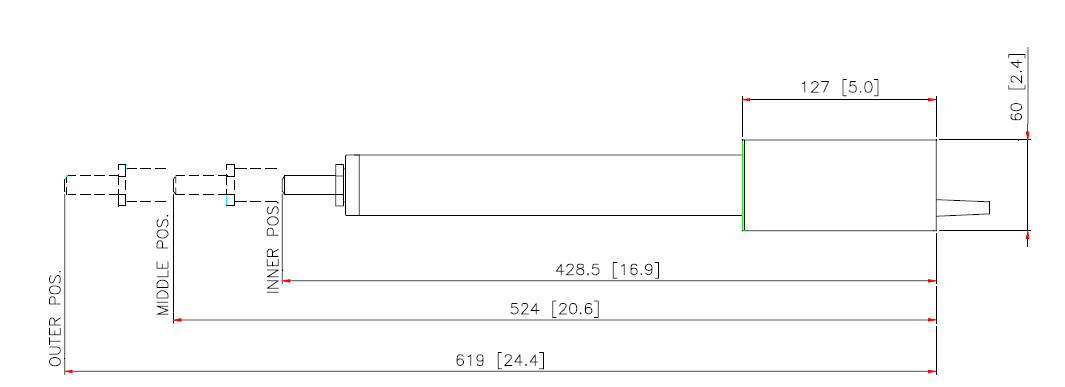

Stroke length: .................................................................. 190 mm
Actuator speed at nominal voltage: ............................ 15 mm/sec.
Ambient temperature:
Storage –30 - +80°C
Operation 0 - +55°C
Maximum power consumption: .............................................40W

The MSD50 can be installed on stern drives with power assisted
steering of the type Volvo, Mercruiser, Yamaha and OMC.
Four different types of mounting kits are available.
Due to the different stern drives and different boat models, it is
important to verify that the MSD50 will fit the actual stern drive
in the particular boat.
Particular attention has to be made to the positioning of the
washers and the plastic spacer to get the MSD50 exactly parallel
to the linear movement of the servo.
The following table gives you the relation between mounting
kits and different types and models of stern drives.
|
Kit no. 1
P/N 21119516 |
Kit no. 2
P/N 21119656 |
Kit no. 3
P/N 21119672 |
Kit no. 4
P/N 21119755 |
Volvo Penta
KAD42/43/44/32 series
and most models after
1993 |
X |
|
|
|
Volvo Penta -41 series.
Old type servo up to 1993 |
|
|
|
X |
Volvo Penta Gas
engines/DP-S drives from
1997 |
|
X |
|
|
“All” Mercruiser models
up to 1993. |
|
X |
|
|
Mercruiser diesel from
1993 and later |
|
X |
|
|
Mercruiser gas/petrol from
1993 and newer |
|
|
X |
|
OMC and Yamaha |
|
X |
|
|
Make sure you have got the correct type of mounting kit supplied with the MSD50.
Kit no. 1 (Volvo Penta stern drive KAD42/43/44/32)
The MSD50 Volvo kit (part no. 21119516) for Volvo Penta stern drives can be used on the KAD42/43/44 series diesel and
petrol engines with SP and DP drives type C and D. All diesel/petrol engines from autumn 1993

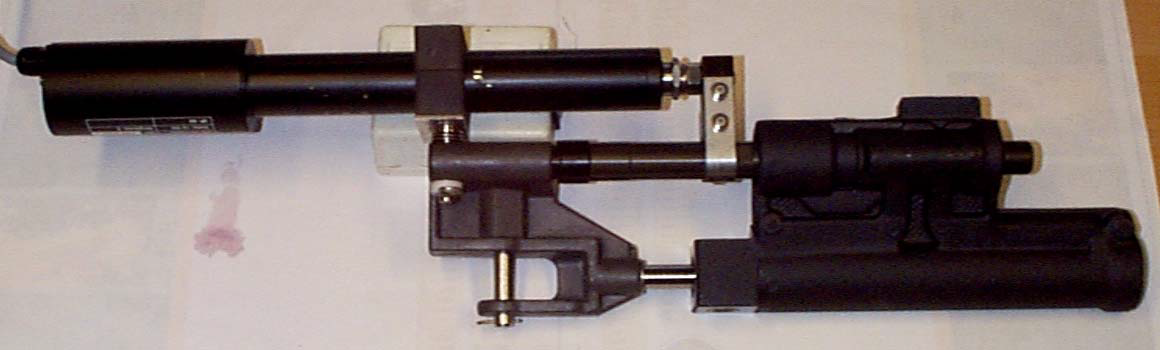

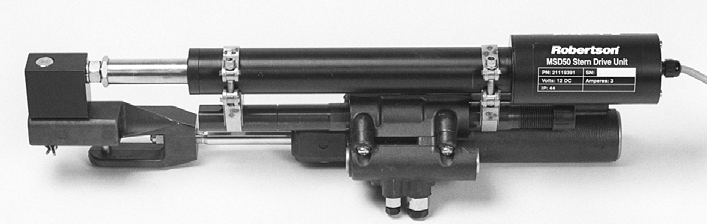

MSD50 mounted to a Volvo Penta stern drive with the Volvo mounting kit (no. 1).

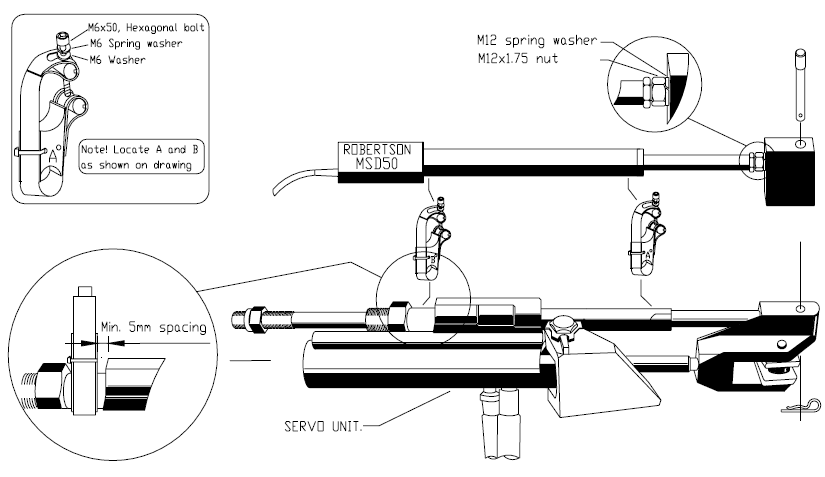

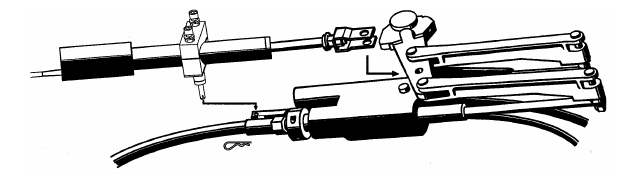

Installation drawing for MSD50/kit no. 1 on Volvo stern drive (KAD42)

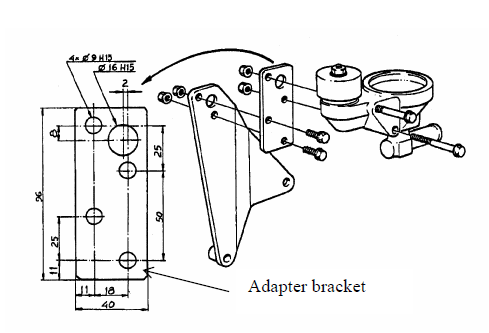

MSD50/KAD32 Adapter Bracket
Kit no. 2 (Mercruiser stern drive, diesel engines 93
)

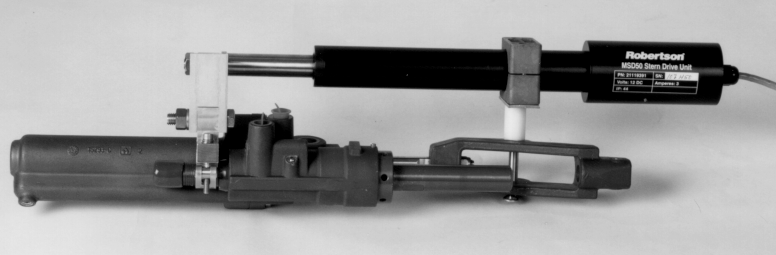

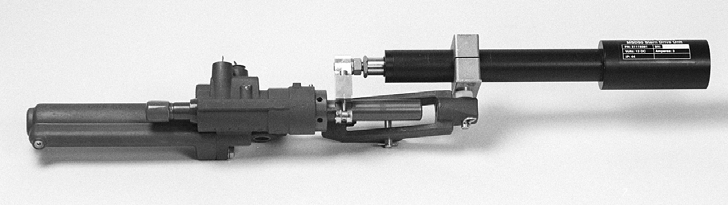

MSD50 mounted to a Mercruiser stern drive with mounting kit no. 2.

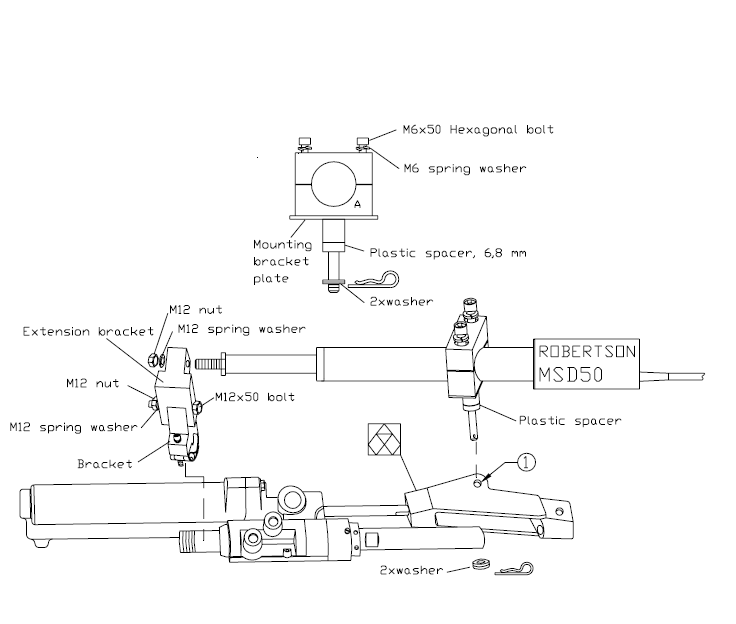

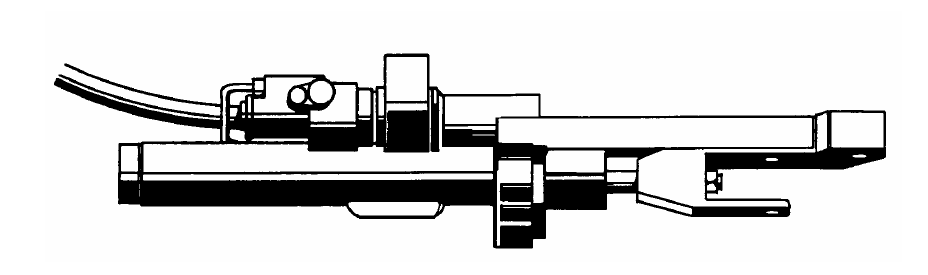

Installation drawing for MSD50/kit no. 2 Mercruiser stern drive, diesel engine 93
Kit no. 2 (Mercruiser, OMC and Yamaha stern drives)

Old model Mercruiser stern drive (
93)

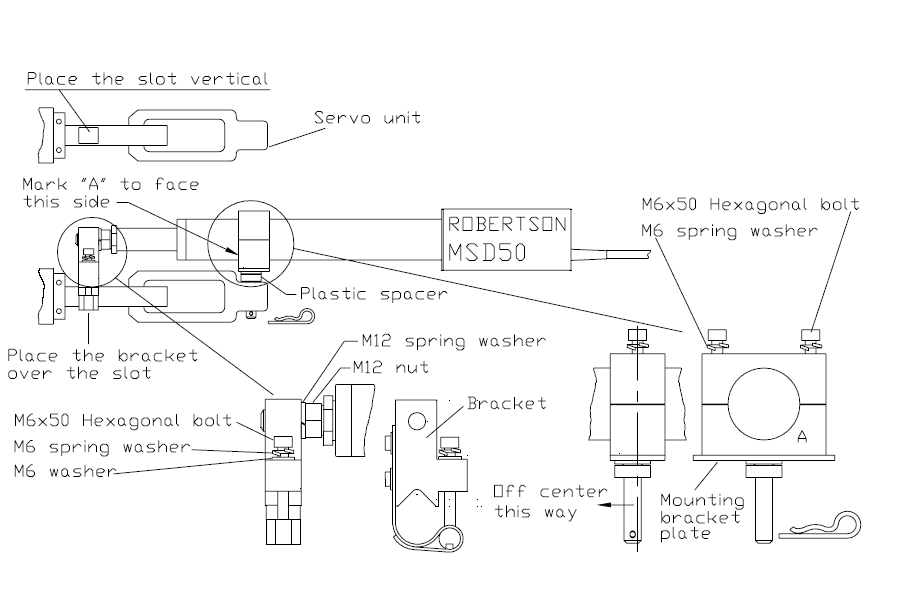

Installation drawing for MSD50/kit no. 2 on Yamaha, OMC and old model Mercruiser stern drives
Kit no. 2 (Volvo Penta DP-S drives, Gas engines from autumn -97)

MSD50 mounted to a Volvo Penta DP-S stern drive with mounting kit no. 2.

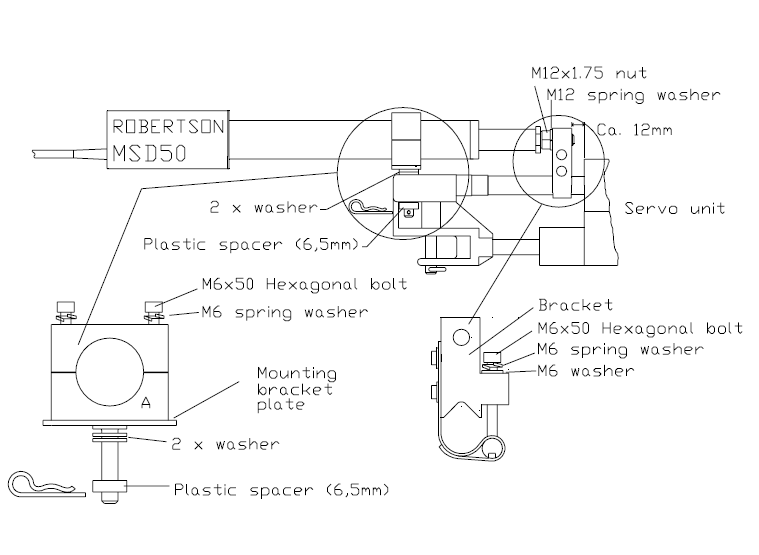

Installation drawing for MSD50/kit no. 2 Volvo Penta DP-S drives
Kit no. 3 (Mercruiser stern drive 93-96 gas engine)

MSD50 mounted to a 93-96 model Mercruiser stern drive with the Mercruiser kit no. 3

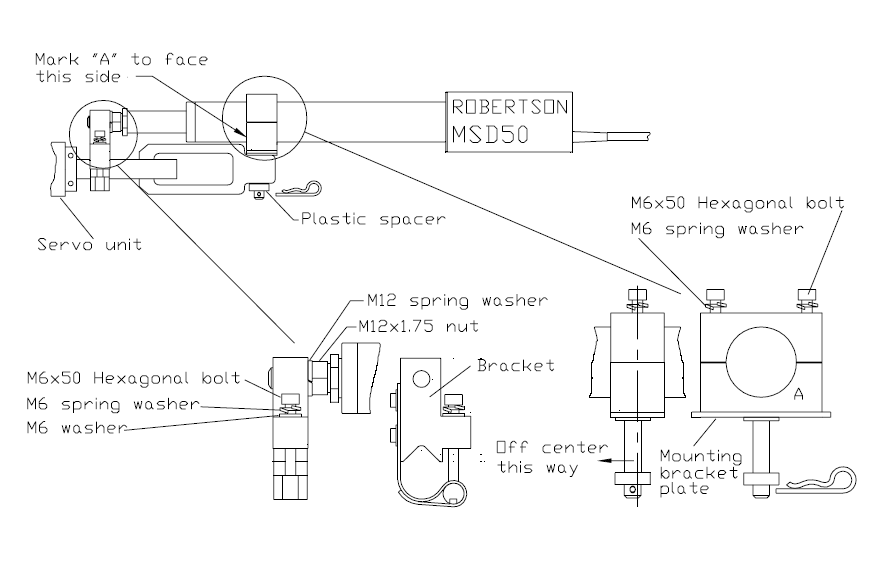

Installation drawing for MSD50/kit no. 3 on Mercruiser stern drive, 93-96 gas/petrol engine
Kit no. 4 (Volvo Penta stern drive -41 series)

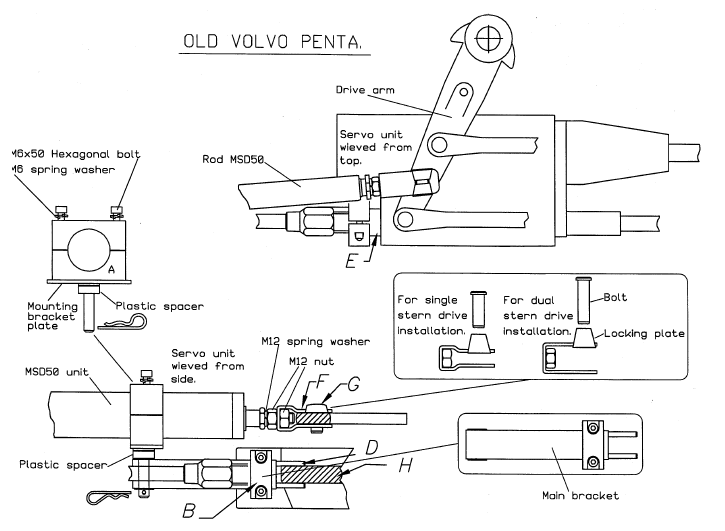

MSD50 mounted to an old Volvo Penta stern drive with Volvo mounting kit no. 4.

Installation drawing for MSD50/kit no. 4 on old type Volvo stern drives
